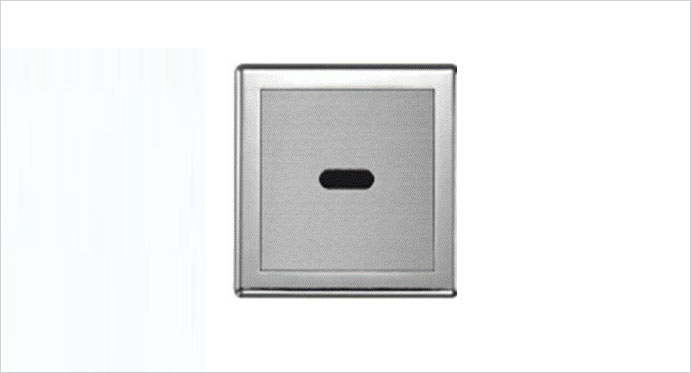

| Battery Auto Urinal Flusher |
 |
| • |
Application : Concealed Urinal |
| •` |
Flusher |
| • |
Power& Voltage : 6 V DC, 4 AA alkaline |
| • |
Batteries |
| • |
Water Inlet Pipe : 1/2" BSP |
| • |
Material : SS Front Plate |
| • |
Solenoid Valve : In built |
| • |
Water Pressure : 1.5 to 6 |
| • |
Weight : 1.5 Kg approx |
| |
|
| |
|
| |
|
|
|
|
| Battery Auto Tap |
 |
| • |
Application : Pillar Mounted |
| •` |
Auto Tap |
| • |
Power & Voltage : 6 V DC, 4 AA |
| • |
alkalinebatteries |
| • |
Dia of Inlet,Outlet pipe: G(1/2)" |
| • |
Water Pressure : 0.05 MPa-0.6MPa |
| • |
Power Consumption : 0.5 mW |
| • |
Detection Zone :Factery set 30 cm |
| • |
Ambient Temp : 0.1 -50 C |
| • |
Protection Degree : Ip56 |
| • |
Dimension : 118mm X900mm |
| |
|
|
|
|

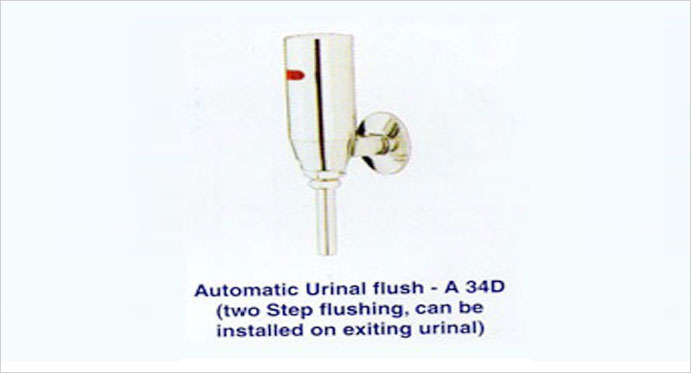

| Battery Auto Urinal Flusher |
 |
| • |
Application : Brass with chrome polish Exposed Urinal Flusher |
| •` |
Power& Voltage : 6 VDC, 4 AA Alkaline |
| • |
Batteries |
| • |
Dia ofInlet pipe: G(1/2)" |
| • |
Dia ofOutletpipe: G(1/2)" |
| • |
Water Pressure : 0.5 to 6mpa |
| • |
Ambient Temp : 0.1-50 Degree celsius |
| • |
Protection Degre: IP 56 |
| • |
Dimension : 160x55x105mm |
| |
|
| |
|
|
|
|
