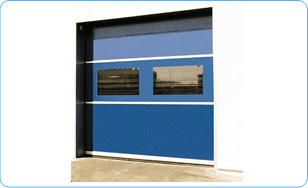

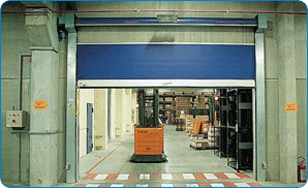

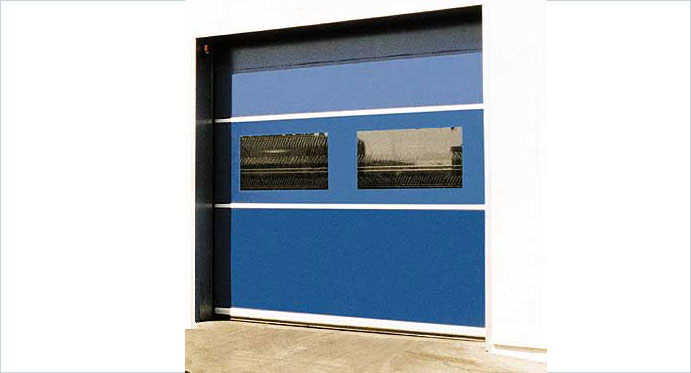

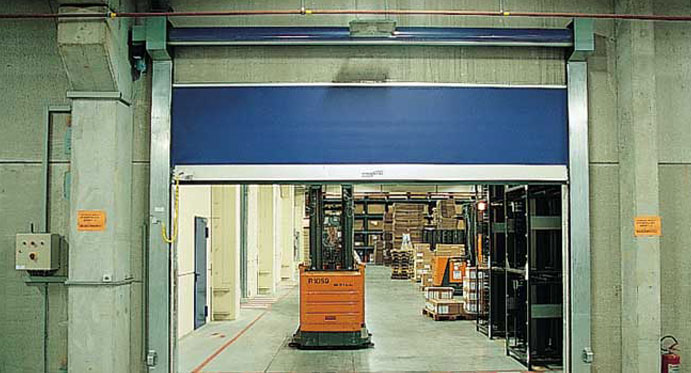

We provide roll up doors. We are engaged in offering our clients high speed roll-up doors, best match for industrial purpose. These shutters are efficient, strong, durable and long lasting as these are made-up of high quality raw material, conforming to international standards of quality. These are highly preferred by industries, they are available in customized options as per the standards laid down by the customers. Permanently increasing energy costs require a moderate and economical handling of the valuable raw materials.
We are one of the most reputed PVC Doors Manufacturers in the market. With high flexural strength, our PVC Doors are resistant to water, chemical and fungus. These doors are made as per the customer requirement. Extensively used in all types of establishments, our products are acknowledged for their sturdiness, durability and easy installation. Moreover, we also supply these products as per the client’s needs and demands.
Features:
•
Provide more security
•
High tech rust proof frames
•
Water resistant
AUTOMATIC ROLL-UP SHUTTERS
Anand Automatic System offers the complete range of tubular, center and side motors for automation of new & existing regular shutters.
Model 220v
H-1003
H-1103
H-2003
H-2103
Model 110v
H-1014
H-1114
H-2041
H-2114
Gear motor weight
7.7 kg
6.8 kg
11.2 kg
10.3 kg
Voltage
110/230V
110/130V
110/230V
110/230V
Amps
4.8/2.4
4.8/2.4
9.0/4.5
9.0/4.5
Power
270W
270W
500W
500W
Duty Cycle
30%
30%
30%
30%
RPM
9
9
9
9
Reduction ration
1/ 150
1/ 150
1/ 150
1/ 150
Life capacity
120kg/264lbs
120kg/264lbs
200kg/440lbs
200kg/440lbs
Capacitor
32/16 UF
32/16 UF
44/22UF
44/22UF
Gear type
Self-Lock
Reversible
H-2003
Reversible
Simplicity and Performance
The roll-up shutter operator of the H series offer a safe and secure system for the automation of every type of roll-up door.
A single model, suitable for various types of shaft and drums, permits a moulder installation without additional adjustment, The possibility to add a second motor, further allows an increase in force for large sized doors.
Several Constructive Innovation make the installation fast and easy. Simplifying the mounting procedure.
The unit feature an EASY TO USE limit system which permits quick regulation during the installation it is sufficient to manually position the roll-up door once in order to set the limits.
The motor is adaptable either to shaft of 48 mm (17/88”) diameter or to those of 60 mm (23/8”), as well as to drums of 200 mm (77/8”) or 220 mm(85/8”) with the spacers provide.
Also, an additional motor may be installed at a later time to increase the lift force from 120 kg (264Lbs) to 200 kg (440Lbs).
The automation is also available in a SELF-LOCK version to provide for an even more reliable and secure installation.
