| Automatic Silding / Swing Gates |
|
|
|
|
|
| |
|
|
|
|
|
|
|

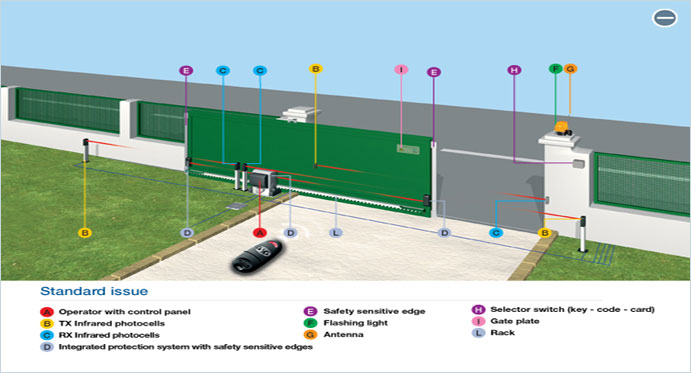

| Electro Mechanical Motor Is Used In Sliding Gate System |
|
| Electro Mechanical Gear Motors For Moving Heavy Sliding Gates |
|
|
|
| A Sturdy ,Safe, Silent And Compact Gearmotor,With Body In Painted Cast Aluminium, And Motor Section Fully Protected. |
|
|
|
| The Innovative Drive Transmission Solutions Make These Gearmotors Suitable For Heavy Duty Tasks. |
|
| A Convienient Release By A Customised Key Enables Manual Movement Incase Of Power Cut. |
|
|
|
| The “C” Versions Have A Built In Genius Control Unit With On Display Programming , Electronic Clutch , Declarations And Braking. |
|
|
|
| By Using The Encoder (Optional Item),The Exact Position Of The Gate Is Assured During Its Entire Movement,As Well As A High Level Of Safety. |
|
| |
Model 14 |
Model 20 |
| Power Supply |
230V AC |
230V AC |
| Power |
780W |
900W |
| Thermal Protection |
140DIGREE C |
140DIGREE C |
| Max Torque |
35Nm |
45Nm |
| Thrust |
110daN |
150daN |
| Pinion Type z16-M4 |
Z16-m4 |
Z16-m4 |
| Max. Door Weight |
1400KG |
2000KG |
| Speed |
10m/min |
10m/min |
| Door Opening Time L.5m |
30SEC |
30SEC |
| Minimum Indicative Hourly |
|
|
| Cycles At 20digree C>24 |
>24 |
>24 |
| Operating Ambient Temperature |
-20digree C +55digree C |
-20digree C +55digree C |
| Operator Weight |
14KG |
14KG |
| Operator Dimensions |
340X225X330mm |
340X225X330mm |
|
|
